Polymer Li-Ion Battery: 7.4v 5.3Ah (39.22Wh, 35C) w/o PCB for DIY--- CE listed (3.18)

Price:
$56.00
SKU:
EC-RCP-S2B-5591
Weight:
1.00 LBS
Shipping:
Calculated at checkout
Quantity:
Bookmark and Share

Product Description

Packing

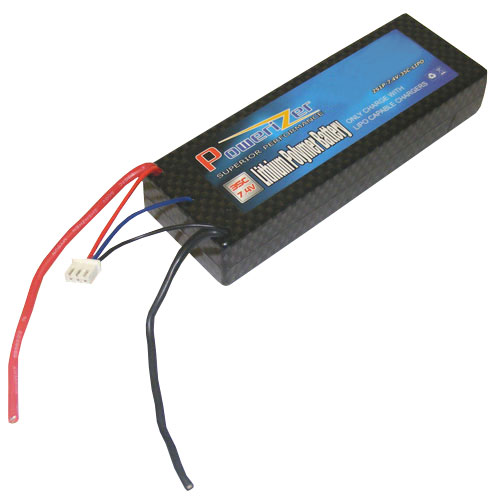

  •  7.4V  5300mAH Polymer Li-Ion Battery pack is made of 2 pcs of High Power Polymer Li-Ion (PL-A542125K) cells
  •  The battery pack is placed in a Plastic Enclosure for RC racing: 140mm x 47mm x 26mm (Black & Grey Color)
Voltage
  •  7.4 v (working)   8.4 V ( peak)    5.5 V ( cut-off)
    • Make your RC devices run faster due to 8.4V peak voltage supply!
Capacity       5300 mAh  (39.22 wh)
Terminal

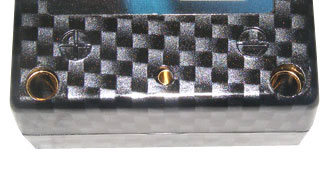

  • Socket for DIY
    • 0.5mm Diameter socket for positive polarity
    • 0.5mm Diameter socket for negative polarity
    • 0.3mm Diameter socket for common point ( The point between "cell1 negative" and "cell 2 positive"

  •
    • Excluded wire for DIY, ( Must order correct AWG wire based on American Wire Gauge table)
    • Must connect wire & connector with correct polarity. EC BATTERY is not responsible for any damage cause by misuse.
    •

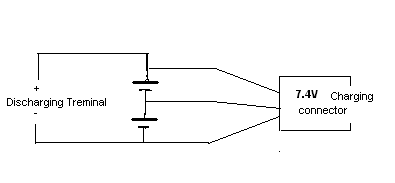

    • Must DIY Charge/Discharge terminal with correct polarity based on diagram below

Max. Discharging Rate
  • 185.5A (35.0C), Maximum continuous discharge, Recommended
  • 371A (70.0C), Maximum Burst rate < 5 seconds
Dimensions (LxWxH)
  •  140mm(5.5") x 47mm(1.9") x 26mm(1.0")
  •  Similar size to 7.2V NiMH pack below (Please click picture to view)
    • NiMH Battery Pack: 7.2V 4500mAh with Dean Connector for RC-10 Cars and Sumo Robots
    • NiMH Battery Pack: Powerizer 7.2V 4200mAh with Dean Connector for RC-10 Cars and Sumo Robots
    • NiMH Battery Pack: Powerizer 7.2V 4200mAh with Tamiya Connector for RC-10 Cars and Sumo Robots
Weight   290 grams (10.2 Oz)
Smart Tips
  • In order to keep the 7.4v 5300 mAh polymer li-ion pack balance while charging, please use either of the chargers below
    • Compact Battery Balance Charger for 7.4V- 11.1V Li-Ion pack
    • Micro-Controlled Multi-Functions SmartCharger for Li-Ion pack.
    • Intelligent Battery Balance Charger
    • Intelligent Digital Balance Charger/Discharger for (NiMH/NiCD 1.2V-18V, Li-Ion 7.4V-22.2V, LFE 6.4V-19.2V, SLA 2V-20V) Battery pack + AC adaptor
    • Intelligent Digital Balance Charger/Discharger for (NiMH/NiCD 1.2V-18V, Li-Ion 7.4V-22.2V, LFE 6.4V-19.2V, SLA 2V-20V) Battery pack
  • The polymer battery is excellent for ebike , RC robot and other high drain DC device up to 371A (70.0C), Maximum Burst rate < 5 seconds
 Applications
  • Superior Battery Power and Battery Strength makes your RC Car a true champion
 Warning
  • This Li-polymer battery pack has no PCB or PCM installed, must be charged by Intelligent Balance charger.
  • Never discharge the battery pack below 5.0V(2.5V/cell).
  •  Always charging the battery immediately after use. We are not responsible for any damage caused by mis-use
